High-performance Japanese "Panasonic" servo motor realizes XYZ three-axis CNC automatic measurement, stable and safe control platform movement, high accuracy, high repeatability；TPI precision screw leads to accurate and reliable measurement positioning accuracy, positioning accuracy can reach 0.002mm
| ◆ High-performance Japanese "Panasonic" servo motor realizes XYZ three-axis CNC automatic measurement, stable and safe control platform movement, high accuracy, high repeatability | ||
| ◆ TPI precision screw leads to accurate and reliable measurement positioning accuracy, positioning accuracy can reach 0.002mm | ||
| ◆ The columns and base are made of high-precision granite structure, which is stable and reliable. | ||
| ◆ High-precision German "RSF" 0.0005mm grating, more stable and high-precision measurement data | ||
| ◆ Data customized export Excel, PDF graphics and text report output function, and can reverse import and export CAD, easily output test results | ||
| ◆ With automatic contour scanning, contour tracking, product shape automatic scanning and other functions | ||
| ◆ The industry's original zoom lens with automatic zoom positioning, easy to achieve yield rate switching and product measurement positioning, increase the measurement speed by 2 times | ||
| ◆ Industrial grade 1920 * 1080 high resolution 130W digital CCD to meet the needs of clear observation and stable measurement | ||
| ◆ International professional image measuring instrument software, support Win 7 operating system, upgrade and maintenance for life, let measurement function never stop moving forward | ||
| ◆ High-performance Taiwan "HIWIN" ultra-precision linear guide rail (travel parallelism accuracy≤0.002mm) |
| machine type | KM Gantry Series CNC | |
| Dimensions（LWH）（mm） | 1337*1630*1783 1437*1730*1783 1837*2130*1783 2137*2030*1783 | |
| Measuring range（LWH）（mm） | 500*600*200 600*800*200 1000*1200*200 1300*1500*200 | |
| Load-bearing（kg） | 1200 1450 1860 2280 | |
| Load-bearing（kg） | 50 60 70 80 | |
| X and Y axis measurement accuracy(μm) | 3.0+L/200 | |
| Z-axis measurement accuracy(μm) | 5.0+L/200 | |
| Repeated measurement accuracy（μm） | ≦3 | |
| X, Y axis movement speed(mm/s) | 0-300 Adjustable | |
| Z axis movement speed(mm/s) | 0-100 Adjustable | |
| Objective lens working distance（mm) | 90 | |
| system platform | Win 7/10 64 bit operating system (requires resolution 1920*1080) | |
| power supply | 220V/50Hz/5A | |
| working environment | Temperature 25 ± 2 ℃, temperature change ≦ 2 ℃ / hr | |
| Magnification | Optical magnification: 0.7-4.5X; image magnification: 44.96-258.63X | |
| Contour light system | LED cold light source, 256-level brightness programmable | |
| Surface light source system | Four-ring, eight-zone LED cold light source, each zone is independently controlled, 256-level brightness programmable | |
| Optical lens | 0.7-4.5X automatic zoom navigation lens barrel (dual CCD) | |
| CCD | 1.3 million pixel color digital industrial camera (Hai Kang) resolution 1920 * 1080 | |
| Operation method | Joystick + software | |
| Lead Rail | Taiwan "Shangyin" precision linear guide | |
| Screw Rod | Taiwan "TBI" forged ball screw | |
| Bearing | Japanese original "NSK" double case combined radial ball bearing | |
| Motor | Japan "Panasonic" AC synchronous servo motor | |
| Movement Control | Full closed loop control | |
| Grating ruler | 0.0005mm | Metal scale German "RSF" |
| Measurement software | KX-CNC | Measurement software |
| Joystick | Xiaolong (drone series rocker) has X, Y, Z axis locking functions | |
| 1 | Support custom modification of image window size, image window can reach 800 * 1066 resolution can reach 1920 * 1080 | |
| 2 | Support light source control: brightness, partition, full zone, and has perfect light source rotation and recording function | |
| 3 | Support overall image focus, partial focus, high-precision focus measurement height | |
| 4 | Support automatic contour scanning, reverse scanning function and construct points, arcs, circles, straight lines directly in the software | |
| 5 | Supports human detection functions such as image detection, synchronous snapshots, offline modification of measurement elements, and modification of custom element names | |
| 6 | Support 2D CAD theoretical elements for fast navigation measurement, measurement without reference contour, custom template export data | |
| 7 | Support output data to encrypted EXCEL, maximum value, direct calculation of minimum value, program translation copy function | |
| 8 | Industry-leading map navigation function, which doubles the programming and measurement speed, saving time and improving efficiency | |
| 9 | Support automatic compensation of line ruler, prompting of measurement abnormality, statistics function of EXCEL report chart | |
| Template matching similarity function | The software enables the template similarity matching function, and can modify the template similarity value when creating a template. The operation is as follows: parameter setting-template matching parameter setting; drag the similarity bar with the mouse to adjust the similarity (For one-button measurement) | |

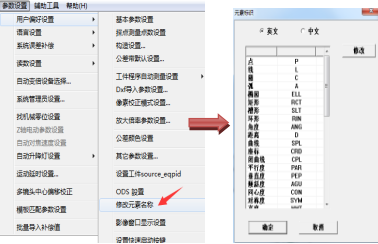

| Element name modification | 1. Element names can be modified; parameter settings-user preferences-modify element names. | |

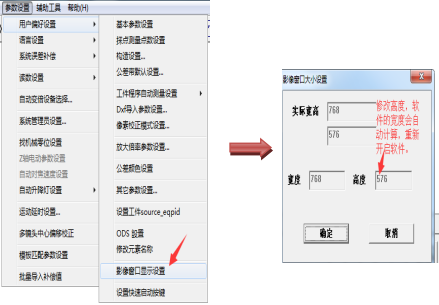

| Modify image window size at will | Instrument software image window size can be modified; parameter settings-user preferences-image window display settings; | |

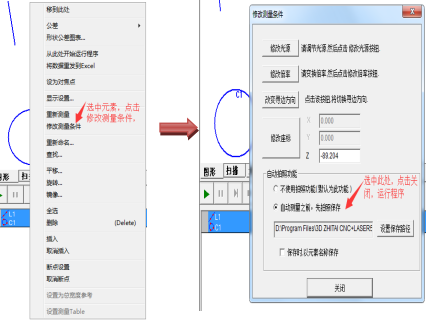

| Modifying measurement elements offline | Software can modify elements offline After the program finishes running, select an element for the element that has saved the picture, right-click in the element measurement method window and select Edit offline picture. You can modify the element of the currently saved picture without moving the workbench;  | |

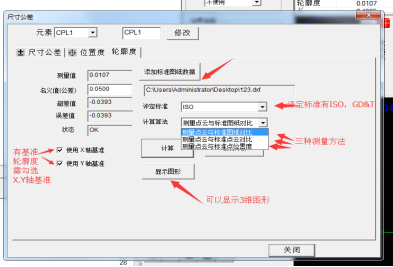

| Measurement without reference profile | 1. Contour measurement, which can measure with and without reference contour. There are two evaluation standards: ISO and GD. There are three methods for measuring with reference contour: 2. Comparison of measurement point cloud and standard drawing, comparison of measurement point cloud and standard point cloud, comparison of measurement point and standard point position  | |
| Calculation function of the maximum and minimum values and the distance between multiple lines and circles |   | |

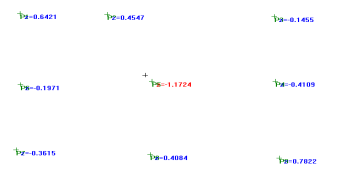

| Warpage calculation function | Warpage calculation function. After measuring the structural surface by stepping on the laser, there will be flatness and warpage. (It can be displayed in the element content.) You can set upper and lower tolerances for warpage. You can directly display the Z-value projection data of each point on the plane in the graphics window. The operation is as follows: parameter value-user preferences-other parameter settings-Tick the Z-value projection data of each point on the display plane, confirm the point, and click the left mouse button in the graphics window to display the Z value of each point Projection data. | |

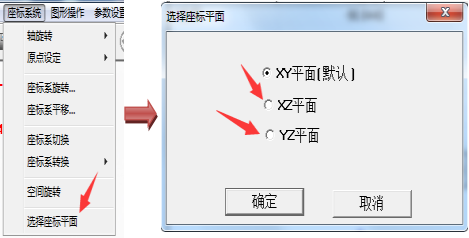

| Space rotation function | The software adds the selection function of the projection surface, the laser point can be reused to reduce the measurement time, and the coordinate values on different surfaces can be displayed. The operation is as follows: First use the laser to step on the point to measure. After the measurement is completed, you can choose the projection plane, coordinate system, and coordinate plane. The software defaults to the XY plane. You can manually select the XZ or YZ plane.  | |

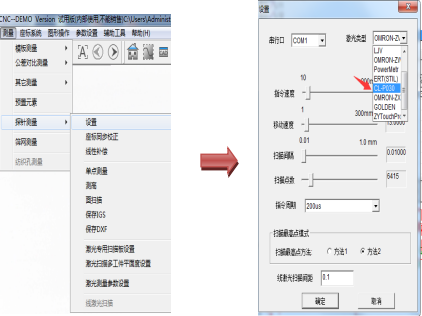

| Spectral confocal laser |  | |

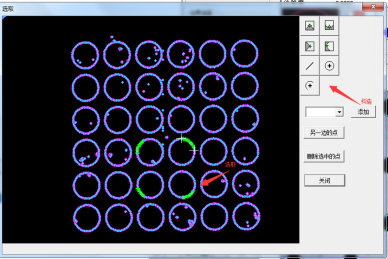

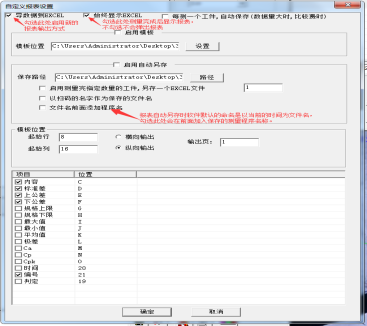

| Reverse scan function | The software is upgraded on the basis of the original scanning. The scanned point cloud can directly construct points, arcs, circles, straight lines, etc. in the software. Click the software scan window to scan the graphic, and double-click the graphic in the scan window. | |
| Customized report settings | The software supports two report output methods. The new output method will be faster and easier to operate. | |
| 1 | Japanese "Panasonic" servo motor Positioning accuracy≤0.002mm 20bit1 turn 1.28 million pulses | |
| 2 | Taiwan "HIWIN" ultra-precision linear guide (parallel accuracy of walking≤0.002mm) | |
| 3 | Taiwan "TBI" ground-grade ball screw (repeat positioning accuracy≤0.002mm) | |
| 4 | Japanese "NSK" double-case combined radial ball bearing (receiving both radial and axial loads) | |
| 5 | "Xiaolong" military UAV series joystick, long service life, high Cost-effective | |
| 6 | Coaxial light automatic zoom lens with metallographic objective lens, greatly improving lens resolution and magnification | |
| 7 | "Haikang" Gigabit Ethernet 1.3 million digital CCD, image resolution up to 1920 * 1080, stable and reliable | |
| 8 | German "RSF" 0.0005mm resolution scale, high accuracy, strong anti-interference, long life | |
| 9 | Marble base and gantry structure, high stability, low changeability, can be used up to 30-50 years | |
